Settings

Preferences

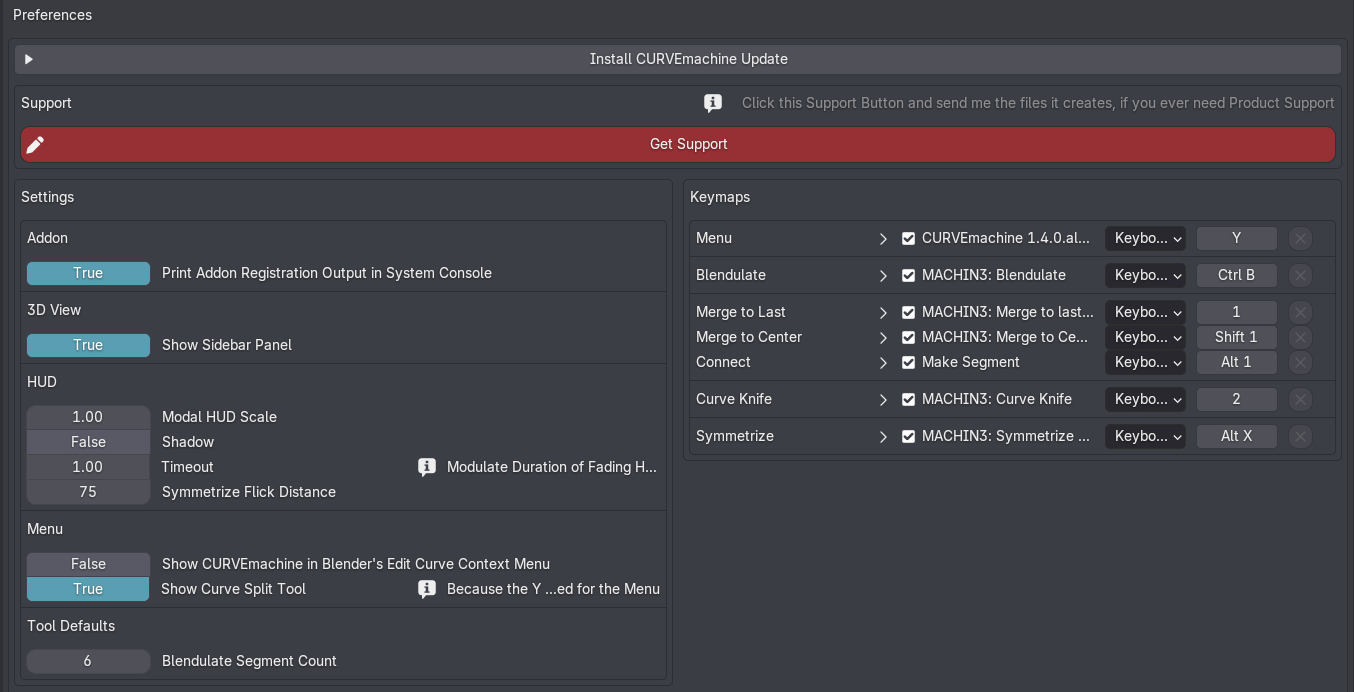

Preferences a few CURVEmachine settings, keymaps, and links

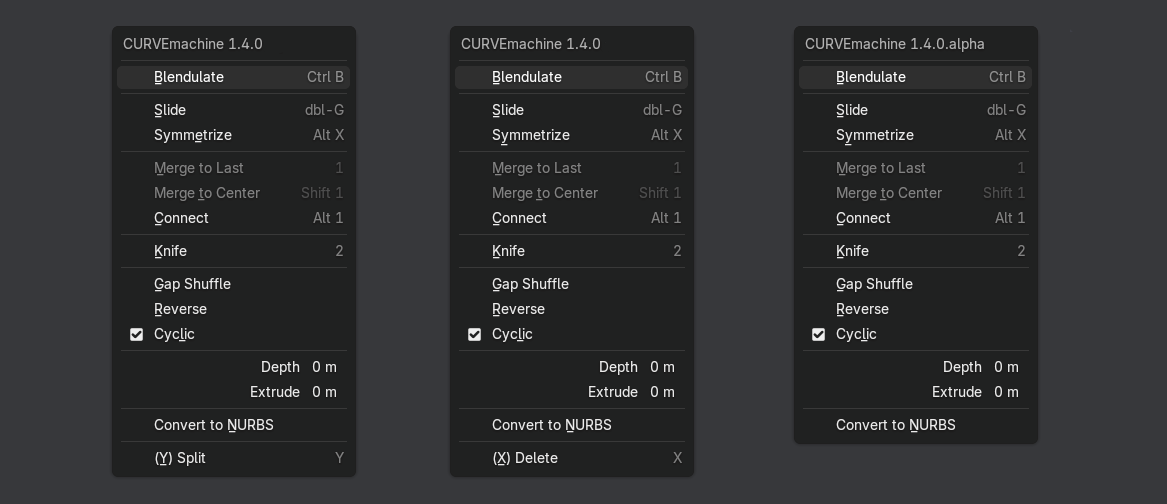

If you use the default Y keymap to bring up the CURVEmachine menu in Edit Curve mode, you will have the option to display the Split tool at the bottom of the menu.
Split is mapped to Y as well, and so with the menu taking over that keymap now, you can press Y two times to call the Split tool.

If you change the menu keymap to X, you will have the option to display the Delete tool/menu instead.

For any other keymap, this section will not be shown.

HUD

Adjust the HUD scaling for modal tools like Blendulate, Slide, and GapShuffle to your liking.

Note

A value of 1 should be fine for most users, as CURVEmachine already takes Blender's UI scaling, as well as any system level scaling into account.
Still, this value allows you to fine-tune how CURVEmachine modals are drawn.

3D View

Choose wether you want CURVEmachine to display a panel in the MACHIN3 tab of the 3D View's sidebar.

Also, use Legacy Line Smoothing for tools like Slide and GapShuffle. With Legacy Line Smoothing disabled, lines drawn by these tools for not be anti-aliased.

Attention

Blender's developers have not yet provided a good way to addon deves, to allow for smooth line drawing using the gpu module, so Legacy Line Smoothing still relies on bgl which is going to be removed in future Blender versions.

Tools

When you invoke the Blendulate tool with a single point selection, a radius/blend with 6 points between the 2 outer points will be created by default.
You can change the amount of these segments in the tool itself, but you can also change that default value here in the prefereces.

Keymaps

All the keymaps CURVEmachine sets by default - except for the Slide tool - are exposed here, and can be changed.

The Merge tool's keymappings roughly follow MACHIN3tools logic, making use of the 1 key, like Smart Vert does.
ALT + 1 maps to the Blender native Make Segment tool, which is called Connect in the CURVEmachine menu.

Support

FatSupportButton fat support button. more people should use it. it helps.

Please use this fat Get Support button, or the smaller one in the 3D View's sidepanel, if you require product support.
Clicking it, will create log files, and provide further instructions in a Readme.html file, that you can open in your webbrowser.

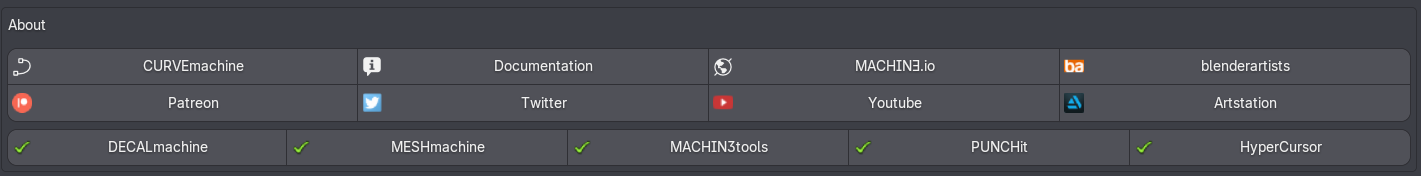

Various links relating to CURVEmachine, my social media, and my other Blender addons, that you may find useful.

Links my other addons at the bottom. more people should buy them. they help.
